Space-saving drylin N low-profile guide systems

Linear solution for small installation spaces

drylin N linear guide with carriage and mounting plate.

The drylin N low-profile guide system is ideal for applications with small installation spaces because it provides heights of 6 to 12mm. The small dimensions also result in efficient energy consumption and low emissions as well as mobile system solutions. The low-profile guide system impresses with the high quality of its manufacture and material. The product itself achieves all qualities with a minimum of components. This means that installation is completed quickly and maintenance as straightforward as possible.

To the shop for drylin low-profile guide systems

You can find this on our website:

Free drylin N sample box

drylin sample box with product sample and folded-out packaging.

Convince yourself of our drylin N low-profile guide system with our sample box.

Request sample box

Download white paper

White paper with 10 potential savings through the use of plain bearings.

10 potential savings that can help you cut unnecessary costs with drylin linear bearings.

Download white paper

Why choose drylin N profile guides?

Can be used in small installation spaces

Space-saving design with an installation height of 9 to 12mm.

Lower energy costs

Thanks to a lightweight, energy-efficient design of the low-profile guide system.

Easy to adjust and position

The defined displacement forces make adjustment and positioning easy.

Quiet operation

The spring preload of the carriages and sliding elements ensures quiet running.

Less installation time

Due to overmoulded carriages (permanent connection between carriage and sliding element).

Easy installation

Thanks to the use of double carriages, it is not necessary to use several ones.

Components of drylin N low-profile guide systems

drylin N guide rail and carriage combined, shown with mounting plates.

Guide rails silver anodised

Aluminium profile in four installation sizes
Widths from 17 to 80mm
With or without mounting holes for individual processing

Buy silver-anodised guide rails

Guide rails AntiReflex

Black anodised aluminium rails
Reduced light reflection thanks to black surfaces
With or without standard holes

Buy anti-reflective guide rails

drylin N end caps on guide profiles with mounting holes.

End caps for drylin N

Elegant rail/edge finish
Simple and safe installation
For all drylin N rail profiles

Buy end caps

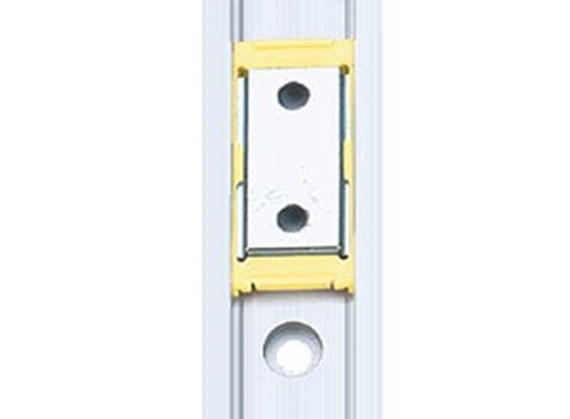

drylin N product guide carriage with metal plate.

Nominal-width guide carriage (01/11/21 series)

Plain holes for fastening from below
Clip-on or moulded sliding elements
Lightweight solid plastic carriages

Buy NW guide carriage

Two views of a metal connector for drylin NW rails.

Nominal-width guide carriage (Series 02/12/22)

Threaded holes/pins for fastening from above
Exchangeable or captive moulded sliding elements
Fixed/floating bearing versions

Buy NW guide carriage (Series 02/12/22)

drylin N slide guide insert with preload, two-part plastic and metal unit.

Nominal-width guide carriage with pretension

With integrated spring preload
For rattle-free adjustments
With plain or threaded hole/pin

Buy NW guide carriage with pretension

Pre-load prism slide

Three linear units with different precision inserts and guide profiles.

4 pre-load classes
Can also be utilised in hygienic environments
For screw connections from below or via threaded studs

More information

SLN low-profile guide system with lead screw

Choice of 3 versions
econ basic module / clearance adjustment / pretension
Configure linear module

For the SLN flat guide with lead screw

Application examples including drylin low-profile guide systems

Robot delivery service

Self-guiding robots specialising in delivery from a predefined destination.

Go to application

CompactChart

Compared with an ordinary flipchart, the CompactChart from Compact Solutions GmbH is an all-rounder with drylin N rail and suitable carriages from igus.

Go to application
