The product range of lubrication-free drylin® linear guides is based on the principle of "gliding instead of rolling". In combination with corrosion-free materials, tribo-optimised iglidur® high performance polymers are used as a sliding surface. drylin® linear guides traverse in dry operation and are thereby maintenance-free and are insensitive to influences such as dirt, water, chemicals, heat or impacts. In addition, they have a very low noise because of the materials used and the special design. With these properties, drylin® linear guides can be used in a wide variety of environments, including extreme ones. The modular system allows for high flexibility with different rail guides and pillow blocks.

Due to order peaks, the delivery time is 5-8 working days longer than stated. Please refer to our order confirmation for the specific delivery date. For urgent, short-term requirements, please contact us personally so that we can realise the delivery time necessary for you. You will find your contact person at the top of the menu under "My contact person", next to the language/country selection, or on this page.

Number of products: 297

drylin® W-Econ double rail WS-CA
  • Consistent silver rail finish
  • "econ" cost-effective and corrosion-free due to clear anodised coating
  • Available as drylin® W single rails and double rails in installation sizes 10/16/20 (round)
  • Suitable for all drylin® W single bearing housings and linear carriages
  • Lifelong rattle-free through combination with pre-loaded drylin® W linear bearings series WJ200UM-01-Pxx
  • Individual bearing clearance adjustment by using WJ200UME-01 bearing housings
  • Design: Double Rail
  • Material: Aluminium
  • Rail profile: Round
drylin® W-Econ single rail WS-CA
  • Consistent silver rail finish
  • "econ" cost-effective and corrosion-free due to clear anodised coating
  • Available as drylin® W single rails and double rails in installation sizes 10 (round)
  • Suitable for all drylin® W single bearing housings and linear carriages
  • Lifelong rattle-free through combination with pre-loaded drylin® W linear bearings series WJ200UM-01-Pxx
  • Individual bearing clearance adjustment by using WJ200UME-01 bearing housings
  • Design: Single Rail
  • Material: Aluminium
  • Rail profile: Round
drylin® W double rail WS
  • Design: Double Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Round

44.42 USD/m

9 24 - 48 hours
5 3 - 4 working days
To the product page

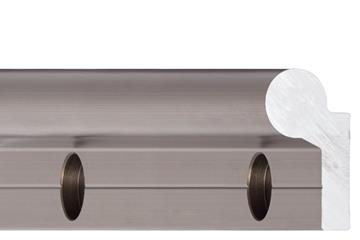

drylin® W single rail WS
  • Design: Single Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Round

45.82 USD/m

6 24 - 48 hours
2 3 - 4 working days
To the product page
drylin® R pillow block RJUM-05
  • Design: short, closed design
  • Material sliding element: iglidur® J
  • Housing material: aluminium

34.17 USD/Pc.

9 24 - 48 hours
To the product page
drylin® W complete slide system WW
  • Design: round
  • Material sliding element: iglidur® J200
  • Material: Die-cast zinc

37.94 USD/Pc.

21 24 - 48 hours
To the product page
drylin® W complete slide system WW-HKA
  • Design: round
  • Material sliding element: iglidur® J
  • Material: Die-cast zinc

69.90 USD/Pc.

6 24 - 48 hours
10 3 - 4 working days
To the product page

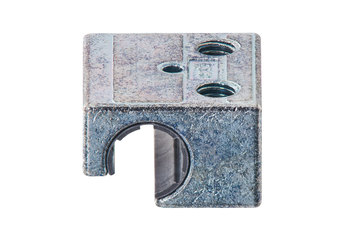

drylin® W pillow block WJ200UM-01
  • Material: Die-cast zinc
  • Material sliding element: iglidur® J200

5.25 USD/Pc.

6 24 - 48 hours
2 3 - 4 working days
To the product page
drylin® N guide rail, installation size 40
  • Material: Aluminum, clear anodized
  • Installation size: 40

49.30 USD/m

1 24 - 48 hours
1 3 - 4 working days
To the product page
drylin® R pillow block FJUMT-01
  • Design: closed design, tandem design, round flange
  • Material sliding element: iglidur® J
  • Housing material: anodised aluminium

40.67 USD/Pc.

8 24 - 48 hours
To the product page
drylin® W single rail WS-ES
  • Design: Single Rail
  • Material: stainless steel 1.4571
  • Rail profile: Round
drylin® T guide rail TS
Material: Aluminium, hard anodised



61.33 USD/m

4 24 - 48 hours
4 3 - 4 working days
To the product page
drylin® N guide carriage installation size 17 iglidur® J sliding element
  • Material sliding element: iglidur® J
  • Mounting type: Threaded bosses
  • Installation size: 17
  • Load capacity, stat.: 50 N

3.65 USD/Pc.

9 24 - 48 hours
4 3 - 4 working days
To the product page

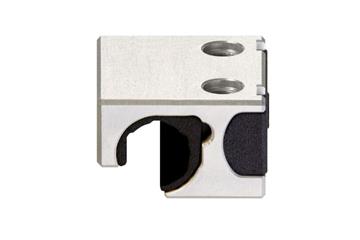

drylin® W pillow block WJ200UMA-01-AL
  • Fast bearing change without disassembly
  • Smart maintenance directly on the rail
  • For single, double and high profile rails round ø 10 mm
  • Material: Aluminium
  • Material sliding element: iglidur® J200

24.59 USD/Pc.

3 24 - 48 hours
To the product page
drylin® W double rail WSX
  • Design: Double rail high profile
  • Material: Aluminum, hard anodized
  • Rail profile: Round

72.61 USD/m

3 24 - 48 hours
To the product page
